Clear View 400-115-B - 4" See Through Billet Screw-on Filter Assembly - Black

-12AN Inlet/Outlet Ports With 115 Micron Element, Suit Disposable Oil Filter

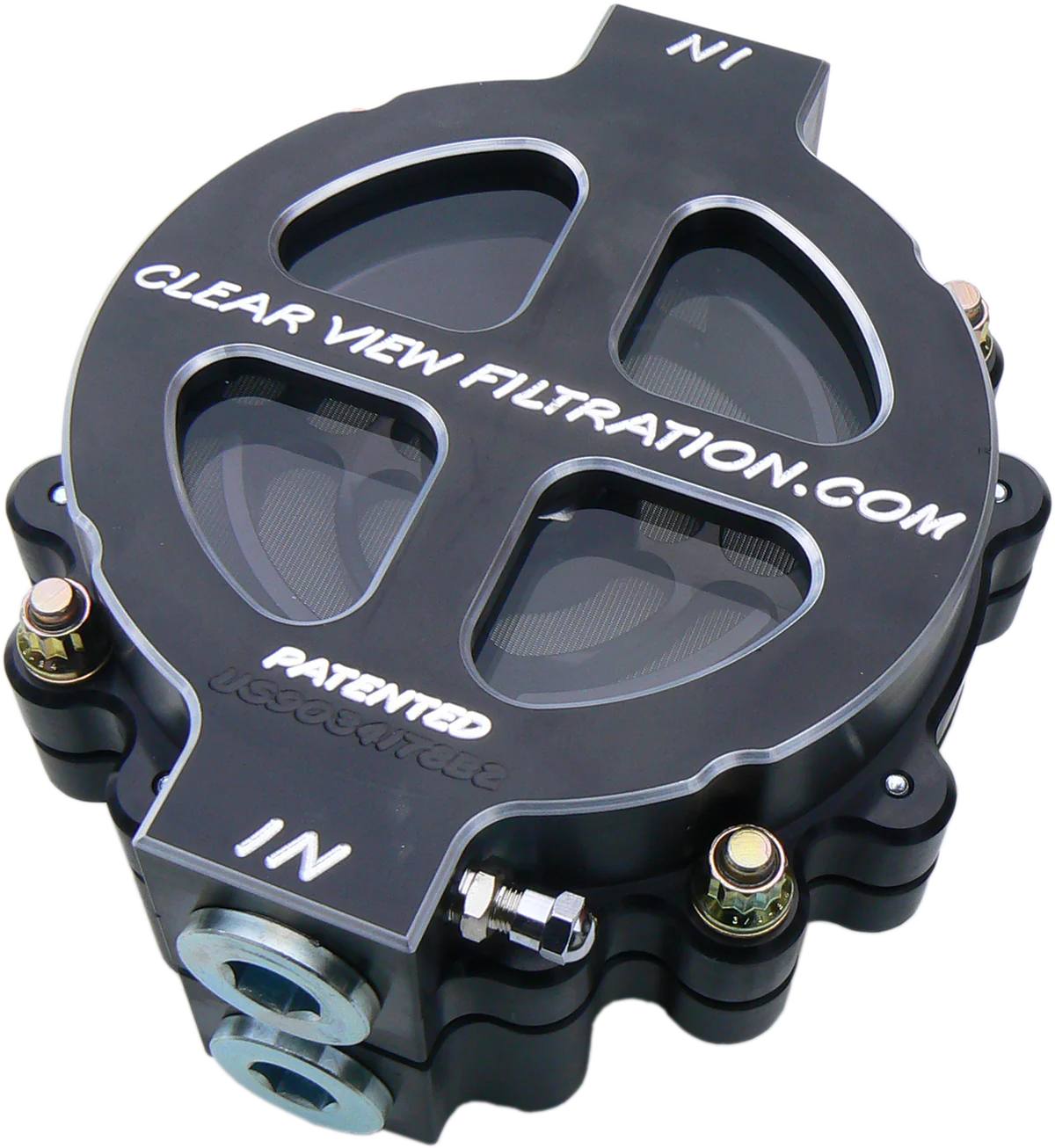

CLEAR VIEW 4" SCREW-ON OIL FILTER ASSEMBLY

Black Anodised

The 4" Screw-On Filters have 2 Inlet and 1 Outlet Port openings that are threaded for #12 O-Ring Boss - 1-1/16-12 TPI fittings. The Inlet and Outlet openings have been machined to 0.625" or 5/8" inside diameter so it will not restrict fluid when using #12 lines.

Disposable Filter Thread Size: 13/16" - 16 TPI
Bypass Relief Valve: Yes
Inlet & Outlet Fitting:
-12 O-Ring Boss - 1 -1/16" - 12 TPI
Operating Temp: max 220 degrees Fahrenheit
Operating Pressure: max 150 PSI
Height (without disposable filter): 3.00 in.
Width: 5.00 in.
Length: 6.00 in.
