DAYTONA SENSORS LED TIMING LIGHT 120001

DAYTONA SENSORS LED TIMING LIGHT 120001

Regular price $666.40
Regular price Sale price $666.40
Sale Sold out
Tax included.

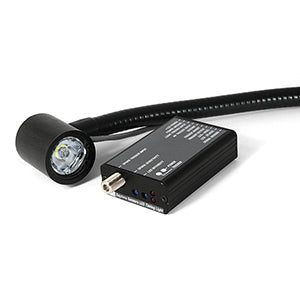

The LED Timing Light 120001 includes a versatile controller and long life LED lamp intended for permanent installation and continuous operation on engine dyno systems.

Features:

  • LED life estimated to be in excess of 400 hours with engine running at 1,500 RPM.
  • Low cost capacitive spark pickup is used with conventional distributor, coil pack, and coil-near-plug ignition systems where a spark plug wire is accessible.
  • Spark trigger sensitivity adjustment to accommodate different ignition energy levels while avoiding false triggering.
  • Additional trigger inputs allow using the LED timing light with coil-on-plug ignition systems.
  • High voltage trigger input allows triggering from COIL- signal for coil-on-plug ignitions without integrated coil drivers.
  • Logic level (0-5V) trigger input allows triggering from coil drive signal for coil-on-plug ignitions with integrated coil drivers.
  • Status LEDs for power and trigger signal.
  • New Phillips Luxeon LED with narrow spot optics is pulsed at over 30 watts to provide brightness equal to or better than conventional Xenon flash tube based timing lights.
  • LED lamp has 15” flexible gooseneck with 1/8-27 NPT male thread that allows easy mounting and alignment on any dyno frame.
  • Black anodized aluminum controller housing and Delrin LED lamp housing.
  • Industrial grade clamping terminal block on rear panel allows easy hookup.
  • Compact size: controller is 3.3”L x 2.1”W x 0.9”H and LED lamp is 1.5” OD x 1.9”L.
  • Operates from 12 VDC. Supplied with international power adapter for 110-240 VAC that includes four interchangeable plugs for worldwide operation.
