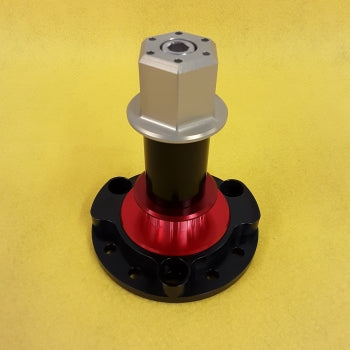

STAR MACHINE MANDREL ASSY 7000 SERIES STR.18.05.000AW
STAR MACHINE MANDREL ASSY 7000 SERIES STR.18.05.000AW
Regular price
$436.00
Regular price
Sale price
$436.00
Unit price
/
per
Tax included.
Couldn't load pickup availability
Will fit Chevrolet 3 bolt pattern on 3.2" bolt circle. Also fits Ford 3&4 bolt pattern on 3.3" bolt circle. Please specify which bolt pattern required when ordering.
Manufactured from a combination of 7075-T6 and 6061-T6/651 aluminum our drive mandrel was designed to be rugged, reliable and versatile. Our drive mandrel is mounted directly to the face of the balancer (with or without a trigger wheel) eliminating the long bolt that retained both a mandrel and balancer to the crank shaft. Your balancer is now (reliably) retained by a separate bolt. The 1.250" hex drive nut/pulley retainer, manufactured from 7075-T6 aluminum and hard anodized, is splined to the 7075-T6 aluminum mandrel shaft. With the positive engagement of a spline your engine can now be manually rotated in either direction, when valve or cam adjustments are required, without (inadvertently) loosening or over tightening the balancer retaining bolt.
Splined mandrels are not new, however they are often unique to each manufacturer requiring the use of ONLY that manufacturers "special" pulleys, spacers etc. The design of our spline allows the use of ANY pulley styles incorporating a 1.000" bore with 0.125" keyway. You won't have to throw away your pulleys and spacers to upgrade to this mandrel.
The pulley mounting shaft portion of the assembly is manufactured from 7075-T6 aluminum, black anodized and features a full length spline, keyway and tapped hole. You can easily shorten the mandrel to mount only the pulleys you require, without special tools.
The mandrel is sold complete with drive nut, shaft, one - 0.125" wide pulley flange, one - 1.87" long spacer sleeve, 1 - full length stainless steel key and 3 - 3/8"-16 X 1.50" L SHCS (stainless steel).
Pump drive pulley sold separately.(Available sizes: 12, 14, 16, and 18 tooth)
(Mass; Mandrel assembly as shown:
580g./1.28lbs; with mounting hardware (3 bolts not shown) 667g./1.47lbs.
Manufactured from a combination of 7075-T6 and 6061-T6/651 aluminum our drive mandrel was designed to be rugged, reliable and versatile. Our drive mandrel is mounted directly to the face of the balancer (with or without a trigger wheel) eliminating the long bolt that retained both a mandrel and balancer to the crank shaft. Your balancer is now (reliably) retained by a separate bolt. The 1.250" hex drive nut/pulley retainer, manufactured from 7075-T6 aluminum and hard anodized, is splined to the 7075-T6 aluminum mandrel shaft. With the positive engagement of a spline your engine can now be manually rotated in either direction, when valve or cam adjustments are required, without (inadvertently) loosening or over tightening the balancer retaining bolt.
Splined mandrels are not new, however they are often unique to each manufacturer requiring the use of ONLY that manufacturers "special" pulleys, spacers etc. The design of our spline allows the use of ANY pulley styles incorporating a 1.000" bore with 0.125" keyway. You won't have to throw away your pulleys and spacers to upgrade to this mandrel.
The pulley mounting shaft portion of the assembly is manufactured from 7075-T6 aluminum, black anodized and features a full length spline, keyway and tapped hole. You can easily shorten the mandrel to mount only the pulleys you require, without special tools.
The mandrel is sold complete with drive nut, shaft, one - 0.125" wide pulley flange, one - 1.87" long spacer sleeve, 1 - full length stainless steel key and 3 - 3/8"-16 X 1.50" L SHCS (stainless steel).
Pump drive pulley sold separately.(Available sizes: 12, 14, 16, and 18 tooth)
(Mass; Mandrel assembly as shown:
580g./1.28lbs; with mounting hardware (3 bolts not shown) 667g./1.47lbs.
